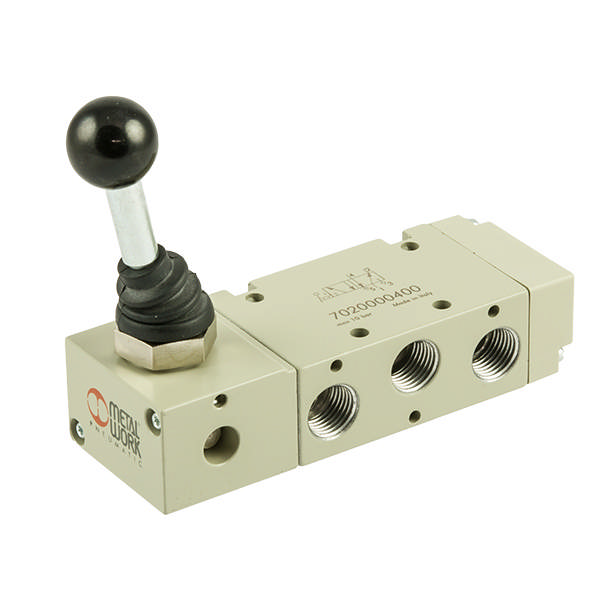

VALVE MAUNELL 3/2 WAY R1/8, BISTABLE NORMAL: CLOSED / OPEN, MOUNTING HOLE: 16 mm
192603240609
Monostable or Bistable Slide valve
Mono= returns to the starting position, Bistabil= stays in the position you release the lever.
Function: 3/2-way, 5/2-way
Material: Valve body: Aluminum
Inner parts: Stainless steel
Seals: NBR
Mounting: With through-hole in panel
Mounting hole R1/8 = 16mm
Mounting hole R1/4 = 28mm
Connections: R1/8" or R1/4"
Working temp: ±0 to +70ºC (dry air -20ºC)
Media: Filtered compressed air
Flow R1/8": 600 L/min
Flow R1/4": 1250 L/min
Pressure range: 0-12Bar
Out of stock
Sign in to view stock status and price
To view stock status and your prices, you need to sign in to your account.
| Name | VALVE MAUNELL 3/2 WAY R1/8, BISTABLE NORMAL: CLOSED / OPEN, MOUNTING HOLE: 16 mm |
| Article number | 192603240609 |
