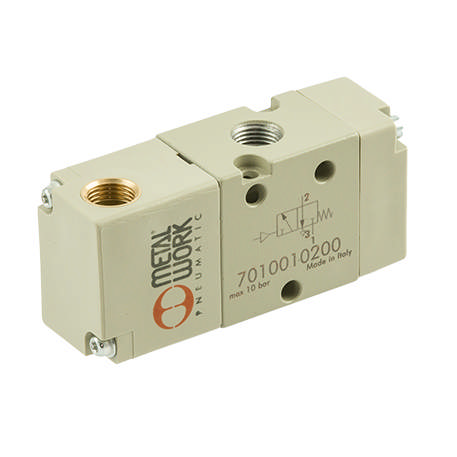

SLIDE VALVE 3/2WAY R1/8 MONOSTABLE
191401320607
Function: 3/2, 5/2, 5/3 Mono or bistable (monostable has spring return)
Material: Valve body: aluminum Slide: stainless steel
Seals: NBR
Mounting: With through-hole mounting plates
Connections: R1/8", R1/4", R1/2
Working temp: ±0 to +80ºC (dry air -20ºC) Media:
Filtered compressed air
Working pressure: 0 – 10 bar
Function: Normally closed
Flow: R1/8 = 700 bar
Flow: R1/4 = 1250 bar
Flow: R1/2 = 2500 bar
Minimum control pressure: 2-3Bar
Out of stock
Sign in to view stock status and price
To view stock status and your prices, you need to sign in to your account.
| Name | SLIDE VALVE 3/2WAY R1/8 MONOSTABLE |
| Article number | 191401320607 |
