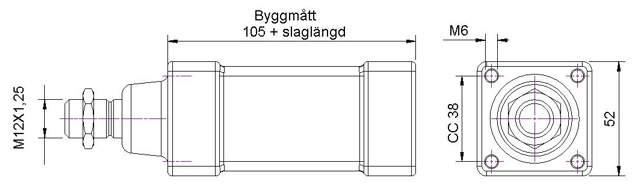

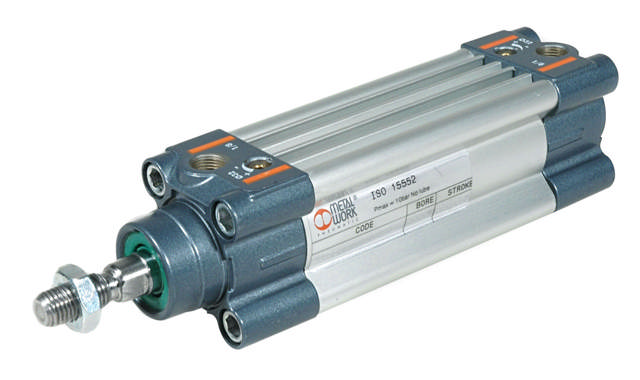

CYLINDER A:R1/4 D 40MM S 160MM Piston Rod 16mm
19040040160
ISO 15552
Ends: Aluminum, cylinder tube: Aluminum, piston rod: Stainless steel.
Working pressure: 1-10 bar
Power at 6 bar: Output bar movement = 664N Input bar movement = 559N
Standard stroke: 25-500mm, special up to 2500mm
A=Connecting thread, D=Cylinder diameter, S=Stroke
Template file not found (in RenderRazorTemplate()): D:\dynamicweb.net\Solutions\Dynamicweb\sternhammar.dw10staging.dynamicweb-cms.com\wwwroot\Files\Templates\\Paragraph\Swift_ProductPrice_Custom.cshtml
Template file not found (in RenderRazorTemplate()): D:\dynamicweb.net\Solutions\Dynamicweb\sternhammar.dw10staging.dynamicweb-cms.com\wwwroot\Files\Templates\\Paragraph\Swift_ProductStock_Custom.cshtml
Sign in to view stock status and price
To view stock status and your prices, you need to sign in to your account.
| Cylinder diameter (mm) | 40 |
| Incoming rod movement (N) | 559 N |
| Material | Aluminum, stainless steel |
| Stroke length (mm) | 160 |
| Standard | ISO 15552 |
| Utgående stångrörelse (N) | 664 N |
| Name | CYLINDER A:R1/4 D 40MM S 160MM Piston Rod 16mm |
| Article number | 19040040160 |
