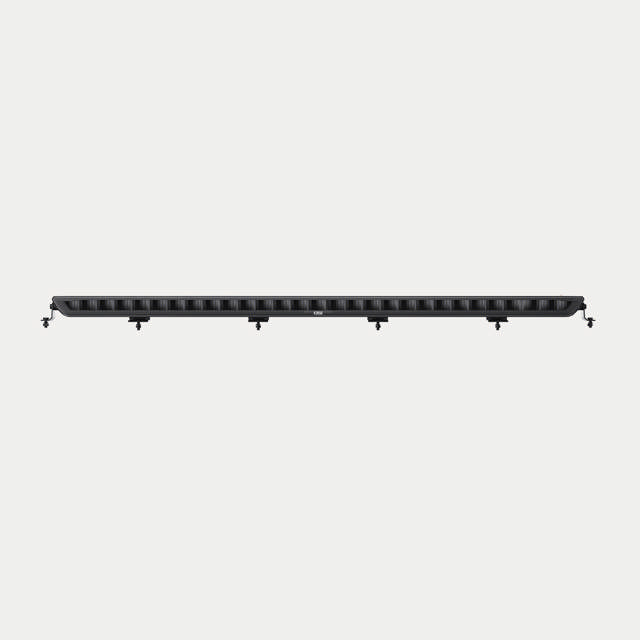

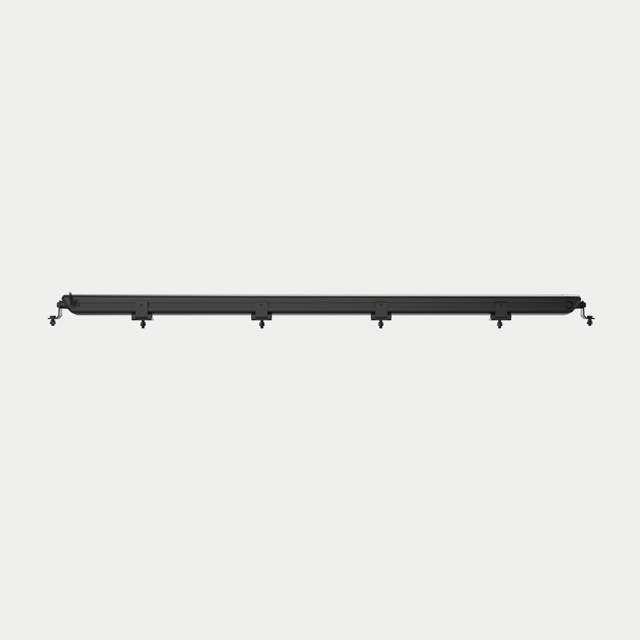

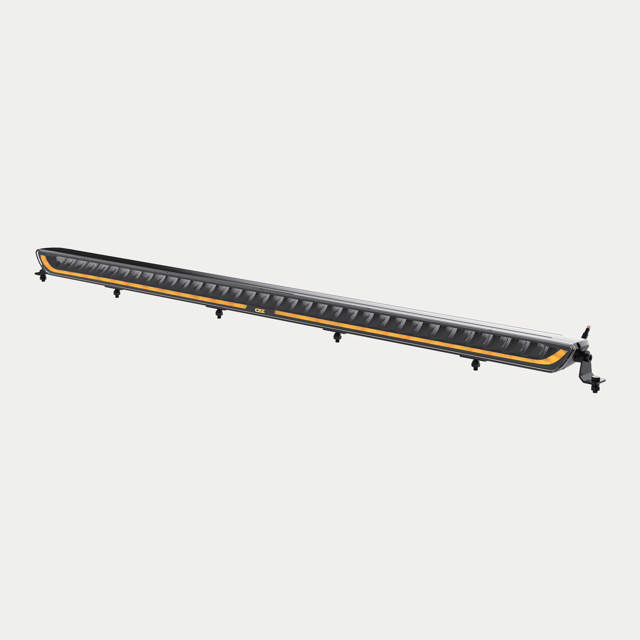

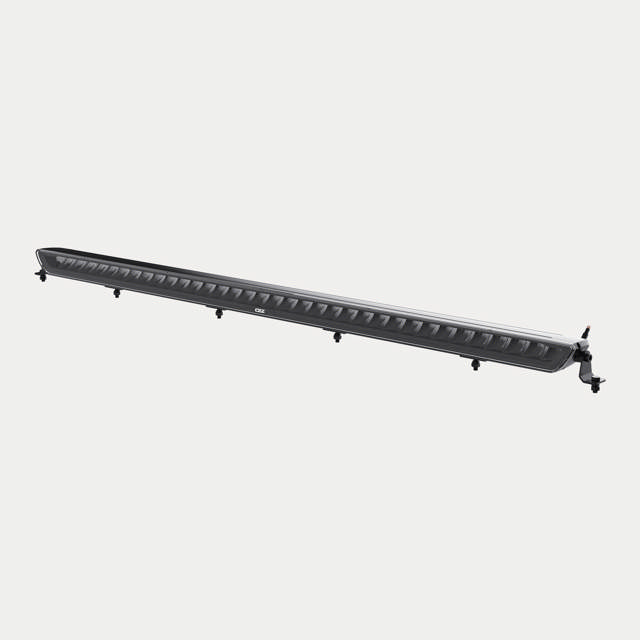

The OZZ XB1 P52" is designed for enhanced safety in all driving conditions. The XB1 P52" offers modern design combined with
efficient performance. The ramp delivers 14400 lumens and 19800 in boost mode, reaching 1 lux in 480 meters and 980 meters in boost mode.
XB1 P52" is designed to withstand tough conditions with aluminum housing, polycarbonate lens and stainless steel mounts. The XB1 P52" is
compliant with standard for ECE R112 and R10 and Guarantees safety and reliability with a three-year warranty.

Technical data:
Lamp type LED
Diodes 36 pcs
Voltar 10-32V DC
Power at 12V R112: 80 W, boost: 265 W
Power at 24V R112: 80 W, boost: 265 W
Power consumption at 12V R112: 6.66 A, boost: 16.5 A
Power consumption at 24V R112: 3.33 A, boost: 8.25 A
Theoretical lumens 36,000
Actual lumens R112: 14,400, boost: 19,800
1 lux @ R112: 480 m, boost: 980 m
Kelvin (K) 5000
IP class IP68/IP69K
Beam Driving
Position light Dynamic white and orange
Connection 4 pin DT male + female (2700 mm)
Material housing, Aluminium, polycarbonate, stainless steel
LxDxH (mm) 1320x70x53 mm
Temp. range -40°C - +60°C
E marking R112
Ref.nr. 50
EMC ECE R10
Weight (kg) 6
Warranty 3 years
