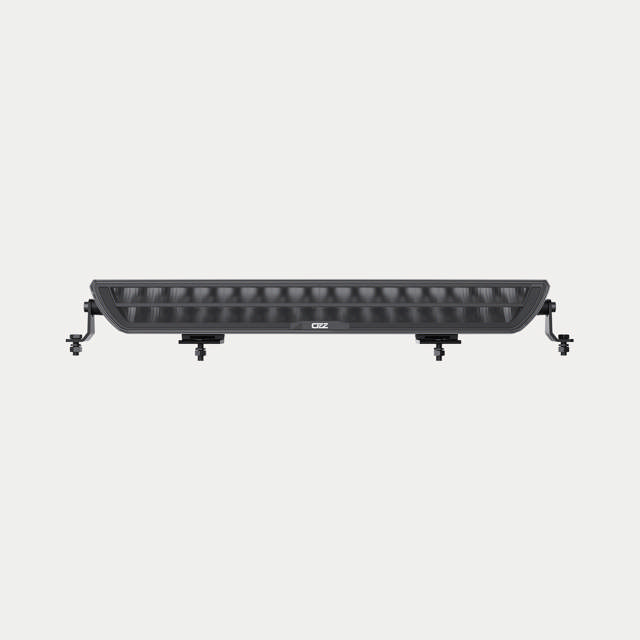

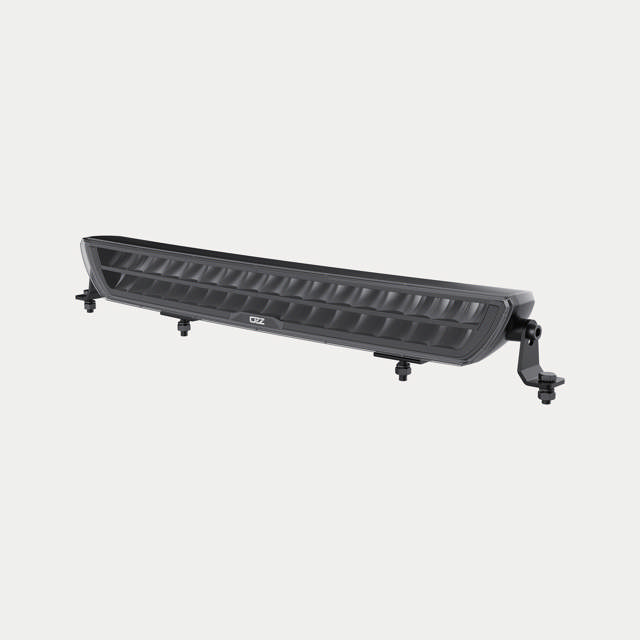

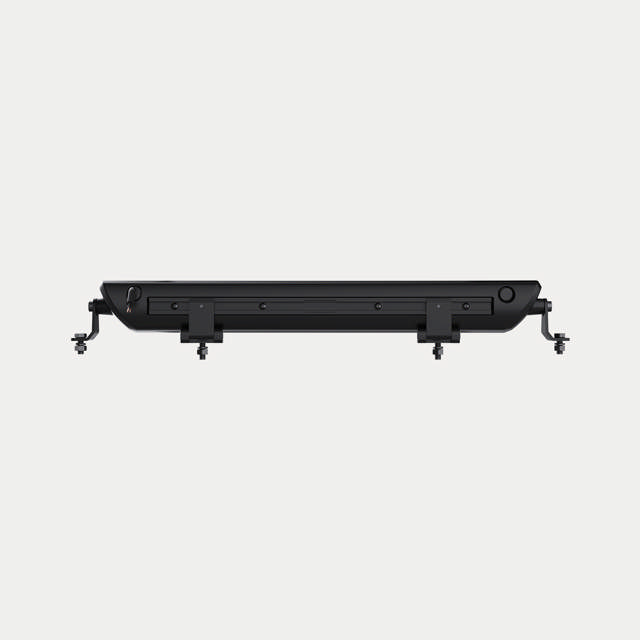

The OZZ DRB1 is a double-row light bar designed for great performance and durability, with 34 diodes delivering impressive brightness
with 9900 lumens in boost mode and 8070 lumens in R112 mode. This gives a range of up to 600 meters at 1 lux. The DRB1 offers
dynamic position light in white and yellow and is designed to withstand harsh conditions with an IP68/IP69K rating. OZZ DRB1 meets the
standard for ECE R112 and EMC ECE R10. A highly reliable LED ramp that delivers both high design quality and performance!

Technical data:
Lamp type LED
Diodes 34 pcs
Voltar 10-32V DC
Power at 12V Boost: 134W, R112: 106.2W
Power at 24V Boost: 131.5W, R112: 103W
Power consumption at 12V Boost: 11.16 A, R112: 8.85 A
Power consumption at 24V Boost: 5,47 A, R112: 4.29 A
Theoretical lumens 18020
Actual lumens Boost: 9900, R112: 8070

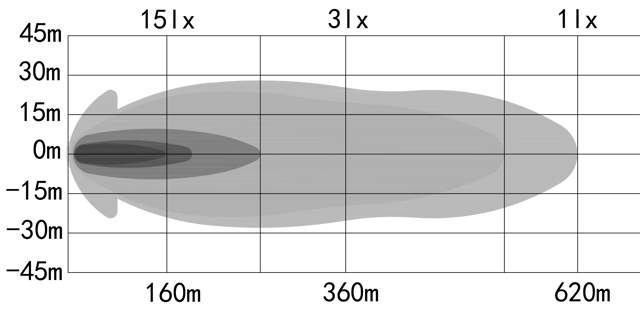

1 lux @ Boost: 620 m, R112: 480 m
Kelvin (K) 5000
IP class IP68/IP69K
Beam Driving
Position light Dynamic white and orange
Connection 4 pin DT male + female (1000 mm)
Material housing, Aluminium, polycarbonate, stainless steel
LxDxH (mm) 546x76x65/77
Temp. range -40°C - +60°C
E-marking R112
Ref.nr. 50
EMC ECE R10
Weight (kg) 3.1
Warranty 3 years
